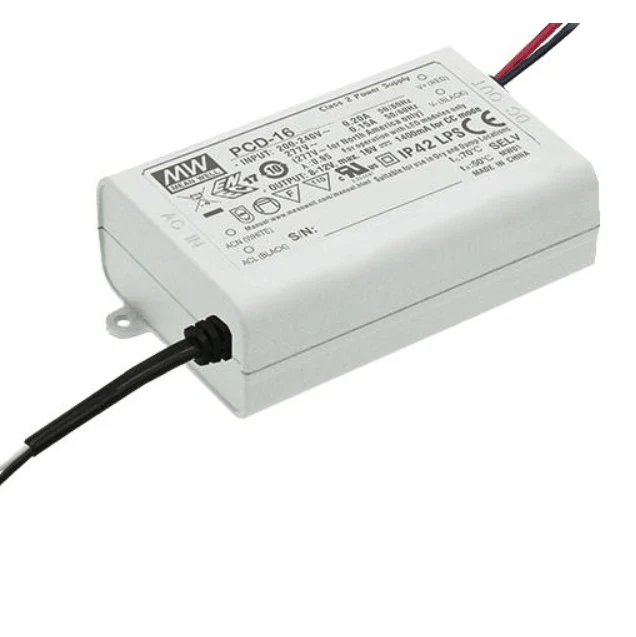

PCD-16-350B LED Driver (16.8W, 48V, 350mA)
PCD-16 series single output AC dimmable LED power supply, suitable for sauna lighting.
Product Specification
- AC phase-cut dimming
- Works with leading edge and trailing edge TRIAC dimmers
- Protections: Short circuit / over temperature
- IP42 design, class II power unit, no FG
- 100% full load burn-in test
- 16.8W output rated power, 82% typical efficiency
- Built-in active PFC function, constant current design
- Cooling by free air convection, fully isolated plastic case
- 350mA output rated current, 24 ~ 48V operating output voltage range
- Working temperature range: -30 to +60℃
- Dimensions (L x W x H): 84mm x 57mm x 29.5mm
$15.60
Original: $52.00
-70%PCD-16-350B LED Driver (16.8W, 48V, 350mA)—
$52.00
$15.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
PCD-16 series single output AC dimmable LED power supply, suitable for sauna lighting.
Product Specification
- AC phase-cut dimming
- Works with leading edge and trailing edge TRIAC dimmers
- Protections: Short circuit / over temperature
- IP42 design, class II power unit, no FG
- 100% full load burn-in test
- 16.8W output rated power, 82% typical efficiency
- Built-in active PFC function, constant current design
- Cooling by free air convection, fully isolated plastic case
- 350mA output rated current, 24 ~ 48V operating output voltage range
- Working temperature range: -30 to +60℃
- Dimensions (L x W x H): 84mm x 57mm x 29.5mm
